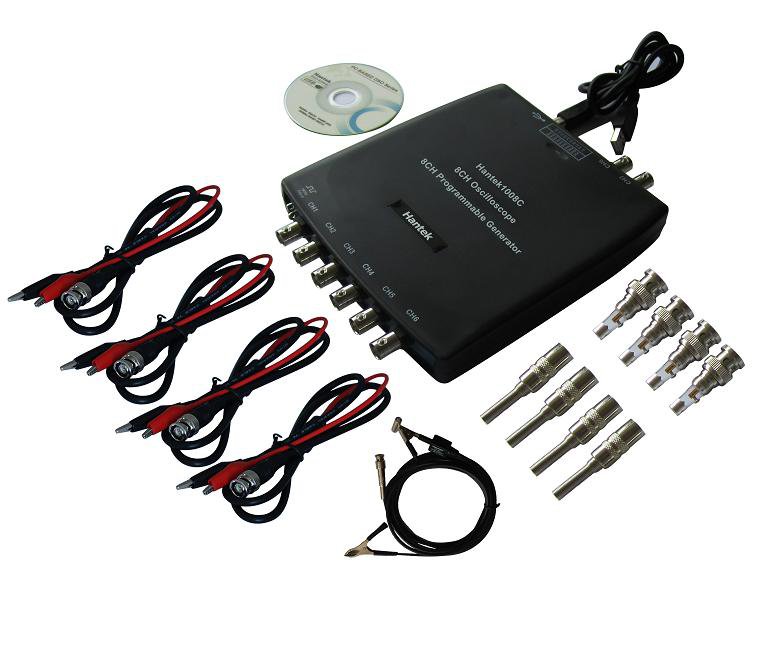

Combo 3 for Hantek 1008C scope + CC-65 AC/DC Current Clamp + BNC to DMM adapter

Combo 3 of following1. Hantek 1008C USB Oscilloscope for AutoDiagnostic2. CC65 AC/DC Current clamp with BNC connector3. A BNC to multimeteradapterfor your CC65 connect directly to multimeter.Product DetailsHantek1008CCost-effective 8 channels oscilloscope for vehicle testing; 2.4MSa/s, 12bits; DAQ card function; 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.OverviewParametersAccessoriesDownloadOneDriveDownloadⅤ FeatureHighly efficient and cost-effective; 8 channels oscilloscope for vehicle testing; 2.4MSa/s real time sampling rate, 12bit vertical resolution; DAQ card function; 8 channels programmable generator which cananalogsignals ofcrankshaft, camshaft etc.1) Vehicle TestingFirst Diagnosis:Intakemanifoldvacuum& ignition,Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignitionIgnition:primary and secondarySensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle positionBus Diagnosis: CAN bus dataexamine,CAN bussignal integrity, CAN busLHlong time acquisition, LIN busPerformer: Petrol/DieselStarter and charging circuits2) Oscilloscope8 channels oscilloscope, 2.4MSa/s real time sampling rate12 bits vertical resolution, spectrum analysis function3) Programmable Generator8 channels programmable generatorCananalogsignals of crankshaft, camshaft etc.4) OthersUSB 2.0 interface plug and play, and no need extra power supply;More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7, Windows 8.Product DetailsAC/DC Current Clamp CC-65AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65A; It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Supplied with coil cable with straight banana plug or BNC plug.OverviewAC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65AFeatureAC/DC frequency range: Up to 20 kHzEffective Measurement Range: 20mA to 65A DCIt is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.ApplicationPower circuit measurement and malfunction analysis;Motor drive of frequency converter (or other electronics) measurement;Power electronics equipments measurement.Function PictureSpecificationDCA Range1 mV /10mA±(1.5%±5mA) 10mA ~20A1mV/100mA±(2%±20mA) 100mA ~40A;±(4%±0.3A)40A~65AACA Range1mV/10mA±(2%±30mA) 100mA ~10A(40Hz ~ 2KHz);±(4%±30mA) 100mA ~10A(2KHz ~ 10KHz);±(6%±30mA) 100mA ~10A(10KHz ~ 20KHz);±(8%±30mA)10A~15A(40Hz ~ 20KHz)1mV/100mA±(2%±30mA) 200mA ~40A(40Hz ~ 1KHz);±(4%±30mA) 200mA ~40A(1KHz ~ 2KHz);±(6%±30mA) 200mA ~40A(3KHz ~ 5KHz);±(8%±0.3A)40A~65A(40Hz ~ 20KHz)Captured Conductor Size9mm maximumLow Battery Indictorred LED lightingOperating Temperature0℃to 50℃70% R.H.Storage Temperature-20℃ to +70℃, 80% R.H.Battery Type9V DC, NEDA 1604,6F22,0006PBattery Life100 hours typical with alkalineWeight250 gm typicalDimensions195mm(H) x 70mm(W) x 33mm(D)OutputSupplied with coil cable with straight banana plug or BNC plug. Type A (with BNC connector) TypeB (withbanana connector) ,RcmdId ViewItemDescV4,RlogId p4%60bo7%60jtb9%3Fuk.rp*05e54c%3E-14d0e76be02-0x10a-->
